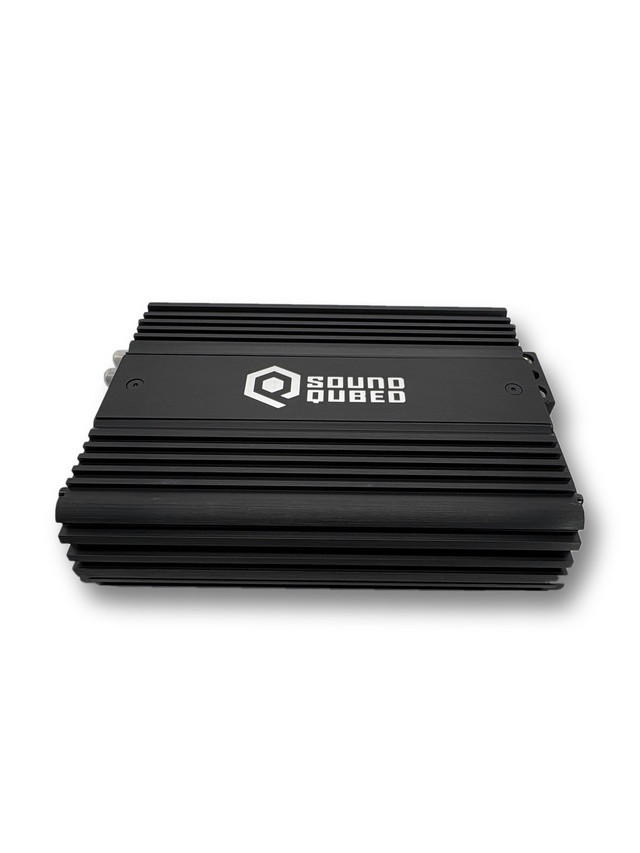

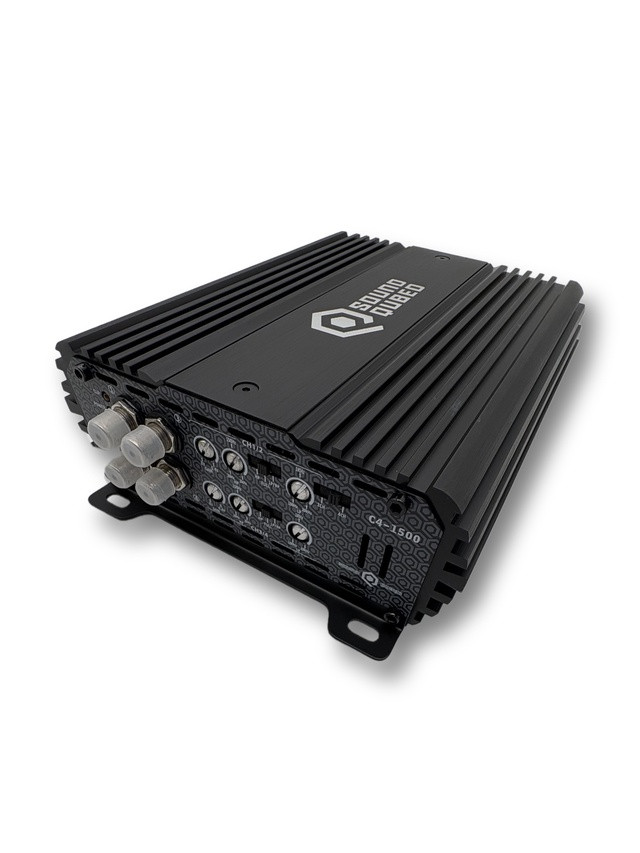

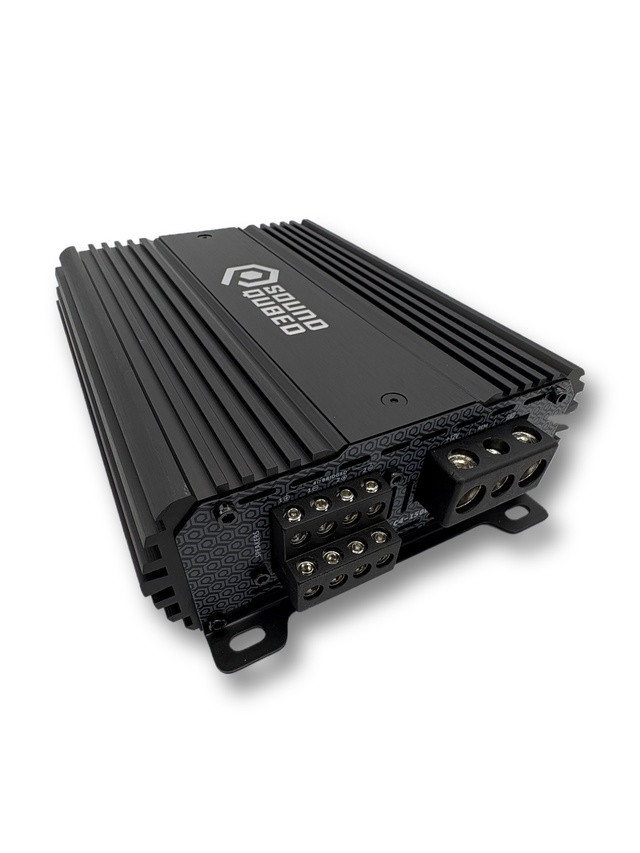

SoundQubed C4-1500 4-Channel Amplifier – 1,500W
$549.95
In stock
Description
The C4-1500 is the 4-channel for builds where the front stage really has to compete. It makes 4 x 375 watts RMS at 2 ohms, or 2 x 700 bridged, with a 10 Hz to 30 kHz frequency response.
Pair it with pro-audio midranges and compression tweeters and it'll keep up with a serious sub setup. Each channel pair has its own selectable crossover, channels 3 and 4 add band-pass with an X1/X10 multiplier, and the chassis is just over 8 inches long.
Every C Series amp is checked on Audio Precision test gear before it leaves us, and each one carries thermal, overload, DC output, short-circuit and voltage protection.
C4-1500 Specifications
| Power | |
|---|---|
| RMS Power @ 4 ohm | 4 x 200W |
| RMS Power @ 2 ohm | 4 x 375W |
| RMS Power @ 4 ohm Bridged | 2 x 700W |
| Audio | |
| Frequency Response | 10Hz-30KHz |
| Signal to Noise Ratio | 94dB |
| Efficiency @ 4 ohm | 85% |
| Damping Factor | 92 |
| Channel Separation | 40dB |
| Input Impedance | 22K ohms |
| Total Harmonic Distortion (THD) | 0.10% |
| Low Level Input Range | 350mV-7V |
| Selectable X-Over (CH 1/2) | HPF / FULL |
| Selectable X-Over (CH 3/4) | HPF / FULL / BPF |
| X-Over Filter Range (CH 3/4) | HPF: 20Hz-2kHz / LPF: 100Hz-20kHz (X1/X10) |
| X-Over Frequency Multiplier | Yes |
| Features | |
| Amplifier Class | Digital |
| Amplifier Type | Stereo Full-Range |
| Number of Channels | 4 |
| Minimum Impedance | 2 Ohm Stereo / 4 Ohm Bridge |
| LED Indicator | Power / Protect / Clip |
| Power Input Terminal Size | 4GA |
| Recommended Fuse | 110A |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes |
| Tiffany-Style RCA Inputs | Yes |
| Body Color | Black |
| Dimensions | |
| Overall Length | 8.19" / 208mm |
| Overall Width | 5.91" / 150mm |
| Overall Height | 2.17" / 55mm |
| Heatsink Length | 7.01" / 178mm |

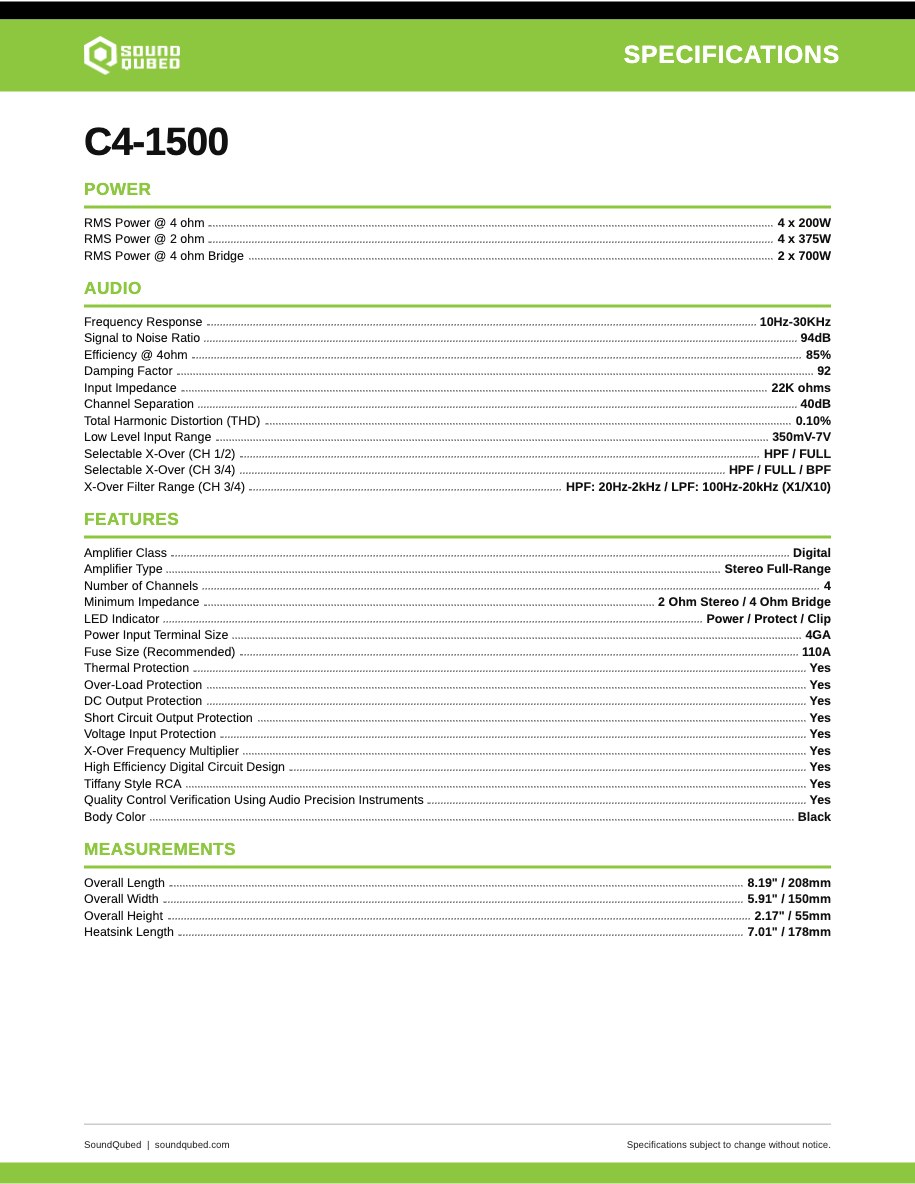

Spec Sheet
SoundQubed C4-1500
Every spec, the recommended fuse and wire size, and the full dimensions on one printable page.
Specifications
| Weight | 5 lbs |
|---|---|
| Type | |
| Series | |
| Power (RMS) |
