SoundQubed C4-500 4-Channel Car Amplifier – 500W Full Range Car Audio Amp
$269.95
In stock
Description

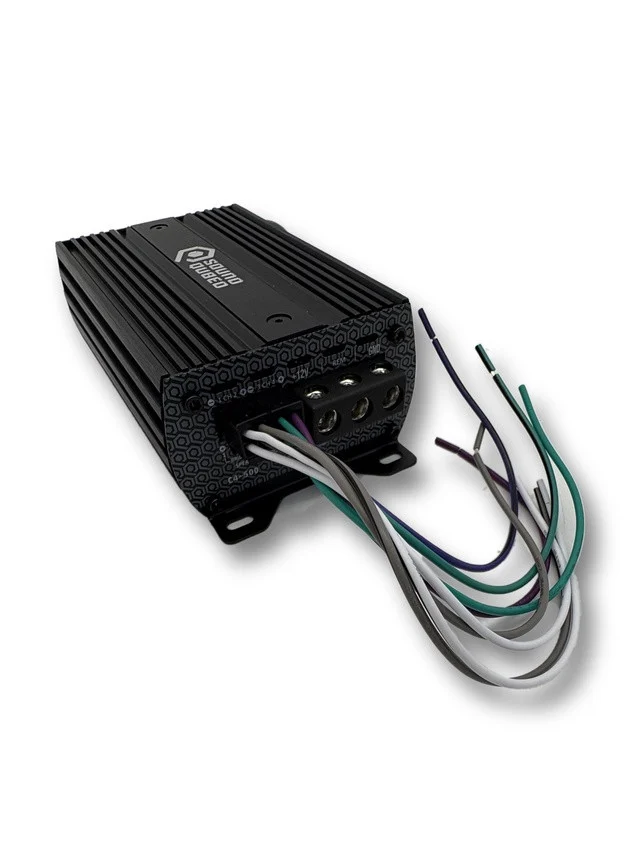

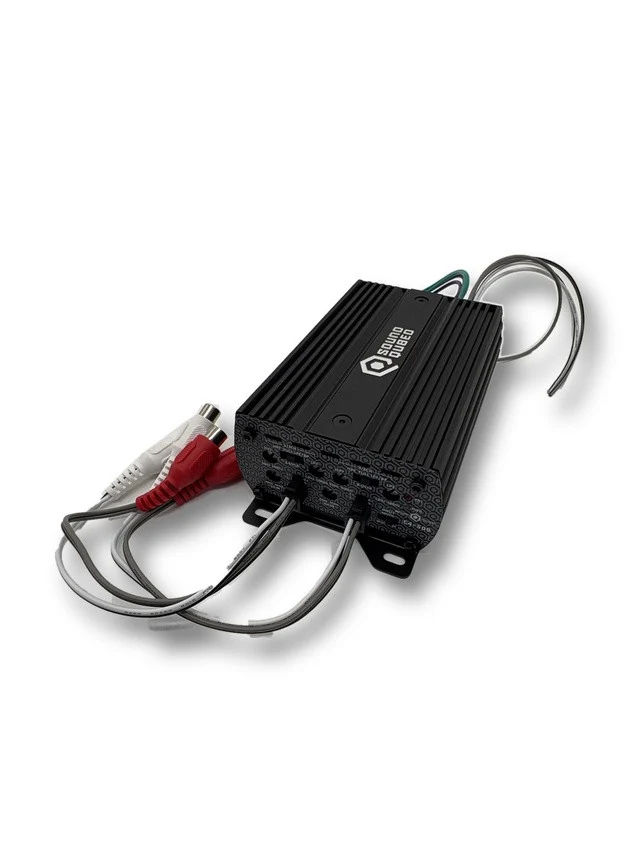

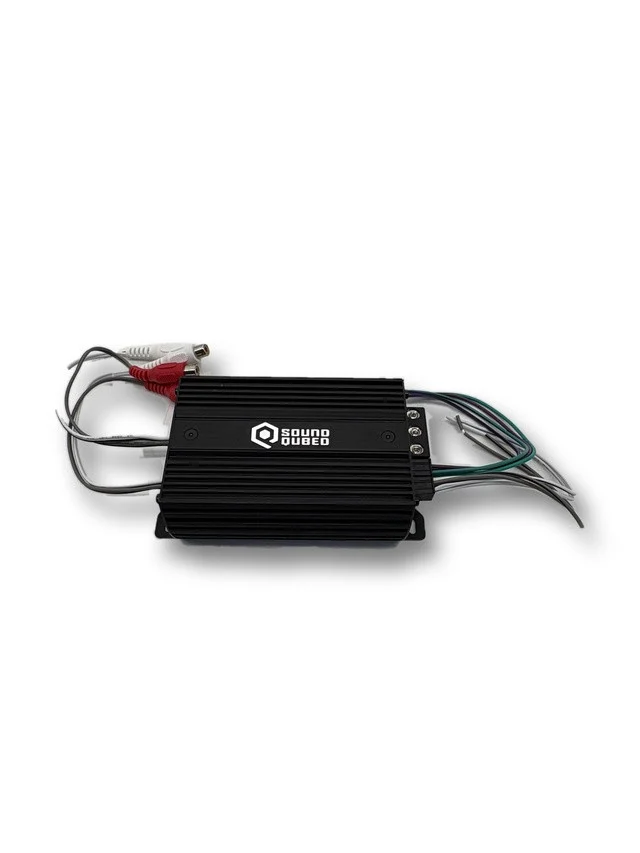

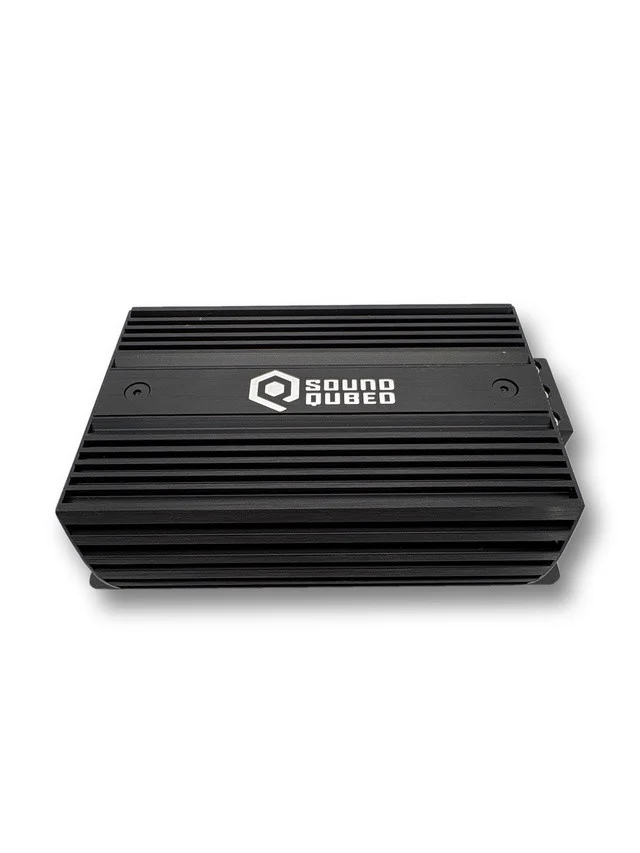

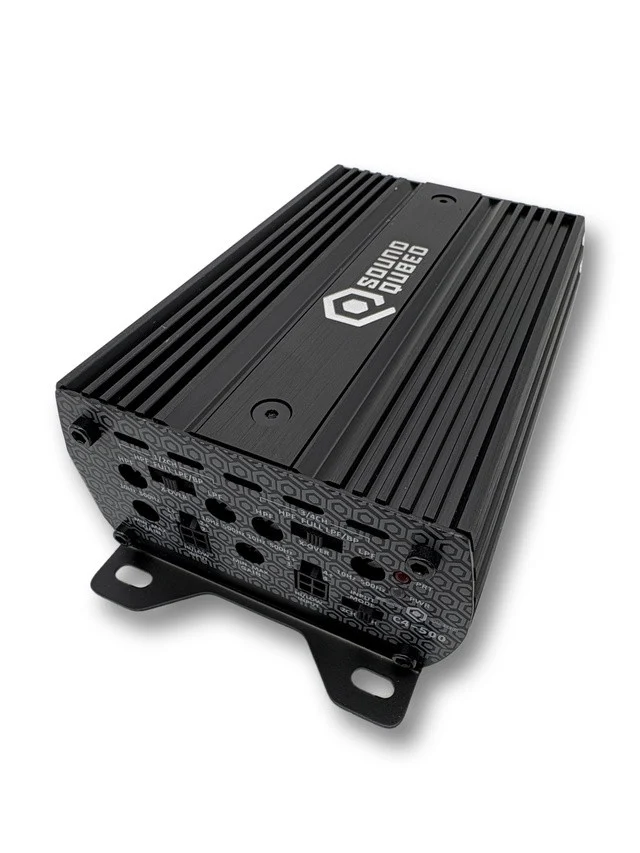

The C4-500 is our smallest 4-channel, and it's small enough to hide almost anywhere. It's about 6 inches long and under 2 inches tall, and it fits behind a dash panel, under a seat or inside a door panel.
It makes 4 x 125 watts RMS at 2 ohms, or bridge it to 2 x 225 watts. That's plenty to bring a set of door speakers and tweeters to life, and the high-pass, full-range and band-pass crossovers let you clean up the bottom end.
Every C Series amp is checked on Audio Precision test gear before it leaves us, and each one carries thermal, overload, DC output, short-circuit and voltage protection.
C4-500 Specifications
| Power | |
|---|---|
| RMS Power @ 4 ohm | 4 x 80W |
| RMS Power @ 2 ohm | 4 x 125W |
| RMS Power @ 4 ohm Bridged | 2 x 225W |
| Audio | |
| Frequency Response | 10Hz-25KHz |
| Signal to Noise Ratio | 95dB |
| Efficiency @ 4 ohm | 85% |
| Damping Factor | 92 |
| Channel Separation | 40dB |
| Input Impedance | 22K ohms |
| Total Harmonic Distortion (THD) | 0.10% |
| Low Level Input Range | 400mV-6V |
| Selectable X-Over (CH 1/2) | HPF / FULL / BPF |
| Selectable X-Over (CH 3/4) | HPF / FULL / BPF |
| X-Over Frequency Multiplier | Yes |
| Features | |
| Amplifier Class | Digital |
| Amplifier Type | Stereo Full-Range |
| Number of Channels | 4 |
| Minimum Impedance | 2 Ohm Stereo / 4 Ohm Bridge |
| LED Indicator | Power / Protect / Clip |
| Power Input Terminal Size | 4GA |
| Recommended Fuse | 40A |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes |
| Tiffany-Style RCA Inputs | Yes |
| Body Color | Black |
| Dimensions | |
| Overall Length | 5.96" / 151.5mm |
| Overall Width | 3.46" / 88mm |
| Overall Height | 1.85" / 47mm |
| Heatsink Length | 4.78" / 121.5mm |

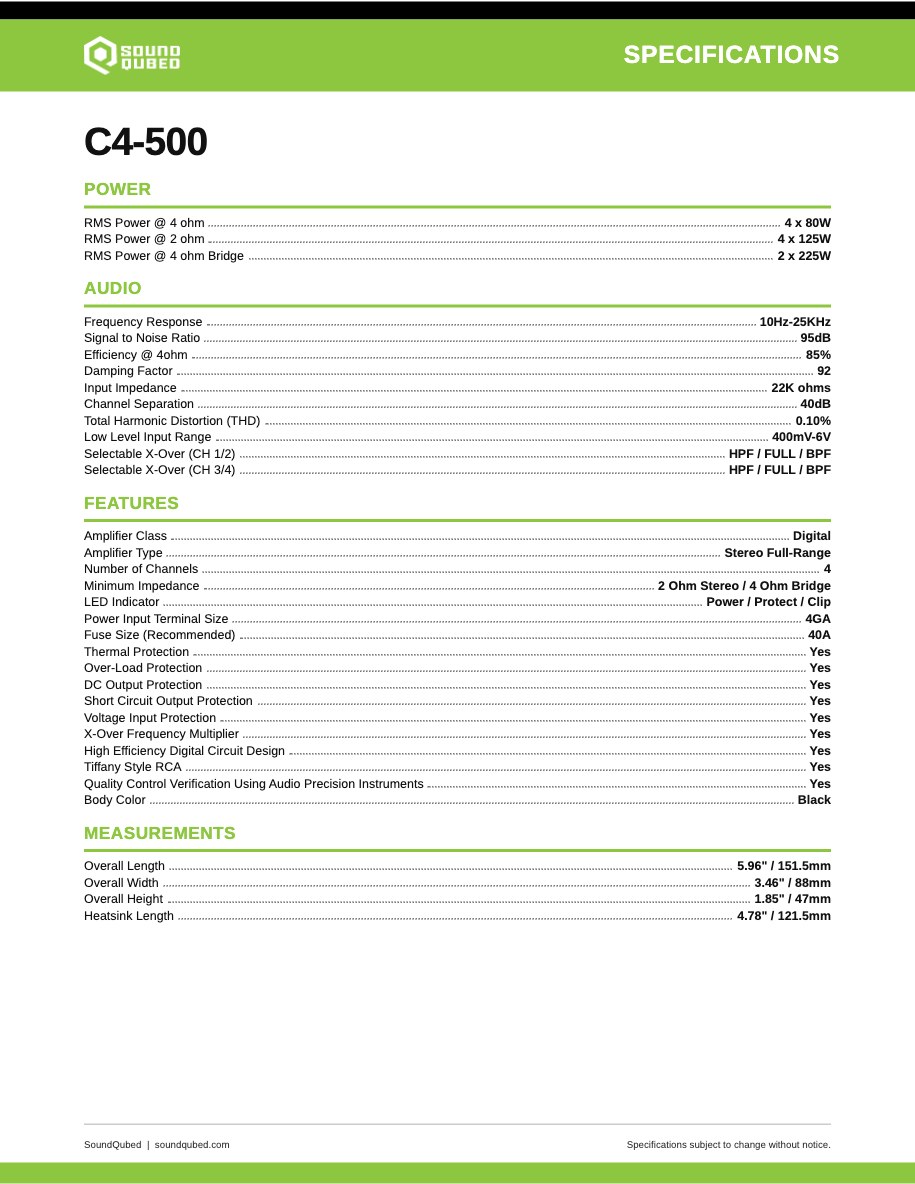

Spec Sheet
SoundQubed C4-500
Every spec, the recommended fuse and wire size, and the full dimensions on one printable page.
Specifications
| Weight | 3 lbs |
|---|---|
| Type | |
| Series | |
| Power (RMS) |
