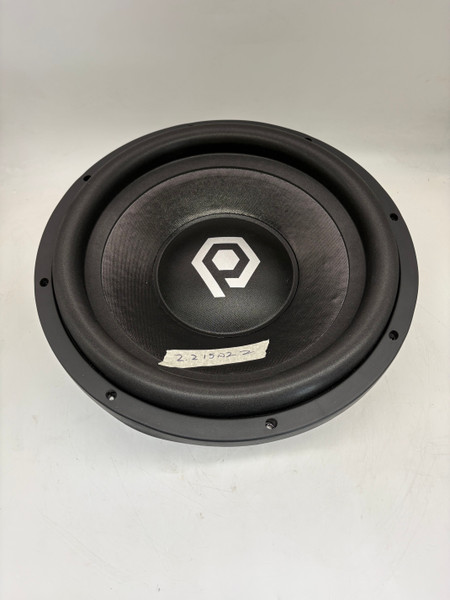

Product Overview
As is. No warranty.
| Model | HDS206 | HDS2.208 | HDS2.210 | HDS2.212 | HDS2.215 |
|---|---|---|---|---|---|
| RMS Power | 350 W | 600 W | 600 W | 600 W | 600 W |
| Peak Power | 1000 W | 1200 W | 1200 W | 1200 W | 1200 W |
| Magnet Weight | 60 Oz | 100 Oz | 100 Oz | 100 Oz | 100 Oz |
| Coil Diameter | 2" | 2.5" | 2.5" | 2.5" | 2.5" |
| Coil Length | 28 mm | 36 mm | 40 mm | 40 mm | 40 mm |
| Woofer Size | 6.5" | 8" | 10" | 12" | 15" |
| F(s) | 45.39 Hz | 44.41 Hz | 33.65 | 30.95 | 26.92 |
| Impedance | D2 / D4 | D2 / D4 | D2 / D4 | D2 / D4 | D2 / D4 |
| Z(max) | 33.81 | 38.77 Ω | 65.65 | 59.14 Ω | 56.79 |
| Q(ms) | 3.553 | 4.465 | 5.461 | 5.078 | 6.363 |
| Q(es) | 0.5515 | 0.5791 | 0.3991 | 0.423 | 0.608 |
| Q(ts) | 0.4774 | 0.5126 | 0.3719 | 0.3905 | 0.5551 |
| V(as) | 3.264 L | 5.319 L | 17.43 L | 45.57 L | 100 L |
| L(e) | 1.498 mH | 5.394 mH | 5.745 | 6.079 mH | 6.473 |
| n(0) | 0.05% | 0.07673 % | 0.1586 | 0.3046 % | 0.3058 |
| M(ms) | 93.7 | 143.8 grams | 201.7 | 209.2 grams | 333.1 |
| C(ms) | 0.131 | 0.089 mm/N | 0.111 | 0.126 mm/N | 0.105 |
| Sensitivity 1W/1m | 79.32 | 80.95 | 84.1 | 86.94 | 86.95 |
| BL | 14.84 | 17.56 | 21.86 | 20.91 | 21.42 |
| Xmax | 9 | 13 | 14 | 14 | 14 |
| Sd | 5.25" | 6.37" | 8.125" | 10" | 12.75" |
| Displacement | .04ft³ | .06^ft³ | .06^ft³ | .07^ft³ | .11^ft³ |
| Mounting Depth | 4.125" | 5.5" | 6.75" | 6.75" | 7.44" |
| Circle Cutout | 6.0625 | 7.5" | 9.375" | 11.25" | 13.875" |
| Sealed Enclosure (Cu Ft): | .25-.5 FT³ | .35-.75 Ft³ | .5-1.0 FT³ | .75-1.5 FT³ | 1.75-2.75 FT³ |
| Ported Enclosure (Cu Ft): | .25-75 Ft³ | .75-1.25 FT³ | .75-1.25 FT³ | 1-1.75 FT³ | 3-6 FT³ |
Warranty Information
No warranty.
