Product Overview
10 Series • Dual 2Ω
HDS3.3-10D2
Precision Punch with Power
10" Dual 2 Ohm Subwoofer | 1500W RMS / 3000W Peak
Step into the world of clean, controlled bass with the HDS3.3-10D2. Designed for daily drivers who crave tight low-end punch and long-term durability, this 10" sub features a 3" voice coil, 160 oz magnet, and a 13 mm Xmax for bold but refined bass performance.
Versatile Enclosures
Ideal for sealed or ported enclosures
Daily Driver Ready
Perfect for daily systems that demand clarity and consistent output
Deep Frequency
Fs of just 27.6 Hz means this sub digs deep!
Bring musicality and SPL together with the HDS3.3-10D2.

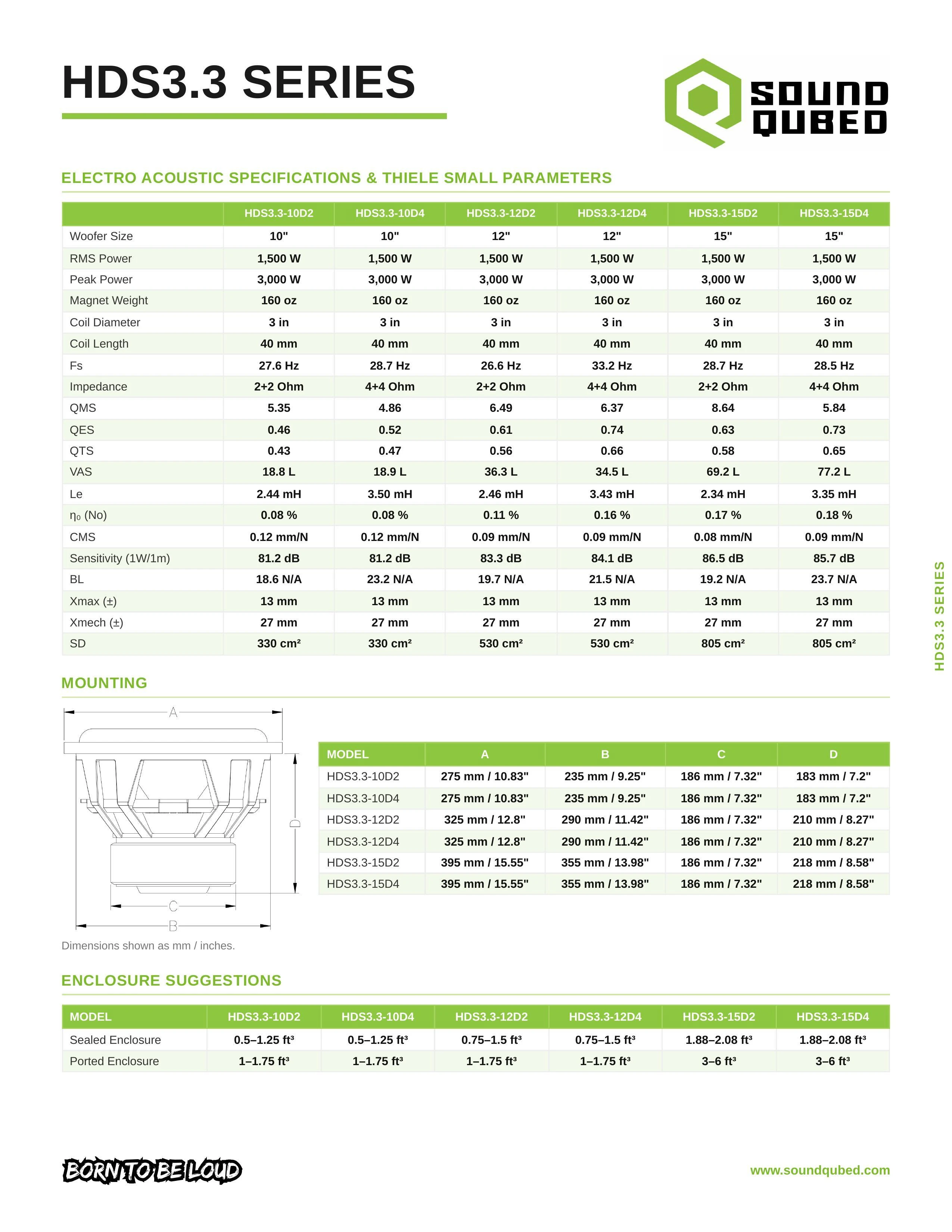

Technical Specifications
Power Handling
RMS Power 1500 W
Peak Power 3000 W
Physical Specifications
Woofer Size 10"
Magnet Weight 160 OZ
Coil Diameter 3 inch
Coil Length 40 mm
Xmax 13 mm
Thiele-Small Parameters
Fs (Resonant Frequency) 27.6 Hz
Impedance 2+2 Ohm
Qms 5.35
Qes 0.5
Qts 0.43
Vas 18.8 L
Le 2.44 mH
η0 (Efficiency) 0.08%
Performance
Cms 0.12 mm/N
Sensitivity (1W / 1M) 82.5 dB
BL 18.6 N/A
SD 442 CM²
Enclosure Recommendations
S
Sealed Enclosure
0.55 - 1.25 ft³
Optimal for tight, accurate bass response
P
Ported Enclosure
0.78 - 1.63 ft³
Ideal for maximum SPL and efficiency
Mounting Dimensions
A - Outer Diameter
270mm 10.63"
B - Mounting Diameter
235mm 9.25"
C - Cutout Diameter
186mm 7.32"
D - Mounting Depth
177mm 6.97"
| Dimension | Metric | Imperial |
|---|---|---|
| A - Outer Diameter | 270mm | 10.63" |
| B - Mounting Diameter | 235mm | 9.25" |
| C - Cutout Diameter | 186mm | 7.32" |
| D - Mounting Depth | 177mm | 6.97" |
