SoundQubed C4-2800 4-Channel Car Amplifier – 2,800W Full Range Car Audio Amp
$699.95
In stock
Description
The C4-2800 is the biggest 4-channel we make: 4 x 700 watts RMS at 2 ohms, or 2 x 1,400 bridged at 4 ohms. It's built for loud pro-audio front stages and for builders who want to run speakers and a sub pair off one amp.
It takes 4-gauge power with a 250A fuse, has clipping protection on top of the usual protection circuits, and has selectable crossovers on both pairs, with high-pass, low-pass and band-pass plus an X1/X10 multiplier on channels 3 and 4.
Every C Series amp is checked on Audio Precision test gear before it leaves us, and each one carries thermal, overload, DC output, short-circuit and voltage protection.
C4-2800 Specifications
| Power | |
|---|---|
| RMS Power @ 4 ohm | 4 x 350W |
| RMS Power @ 2 ohm | 4 x 700W |
| RMS Power @ 4 ohm Bridged | 2 x 1400W |
| Audio | |
| Frequency Response | 10Hz-25KHz |
| Signal to Noise Ratio | 95dB |
| Efficiency @ 4 ohm | 85% |
| Damping Factor | 92 |
| Channel Separation | 40dB |
| Input Impedance | 22K ohms |
| Total Harmonic Distortion (THD) | 0.10% |
| Low Level Input Range | 400mV-6V |
| Selectable X-Over (CH 1/2) | HPF / FULL |
| Selectable X-Over (CH 3/4) | HPF / FULL / BPF |
| X-Over Filter Range (CH 3/4) | HPF: 20Hz-2kHz / LPF: 100Hz-20kHz (X1/X10) |
| X-Over Frequency Multiplier | Yes |
| Features | |
| Amplifier Class | Digital |
| Amplifier Type | Stereo Full-Range |
| Number of Channels | 4 |
| Minimum Impedance | 2 Ohm Stereo / 4 Ohm Bridge |
| LED Indicator | Power / Protect / Clip |
| Power Input Terminal Size | 4GA |
| Recommended Fuse | 250A |
| Clipping Protection | Yes |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes |
| Tiffany-Style RCA Inputs | Yes |
| Body Color | Black |
| Dimensions | |
| Overall Length | 9.53" / 242mm |
| Overall Width | 5.91" / 150mm |
| Overall Height | 2.17" / 55mm |
| Heatsink Length | 8.35" / 212mm |

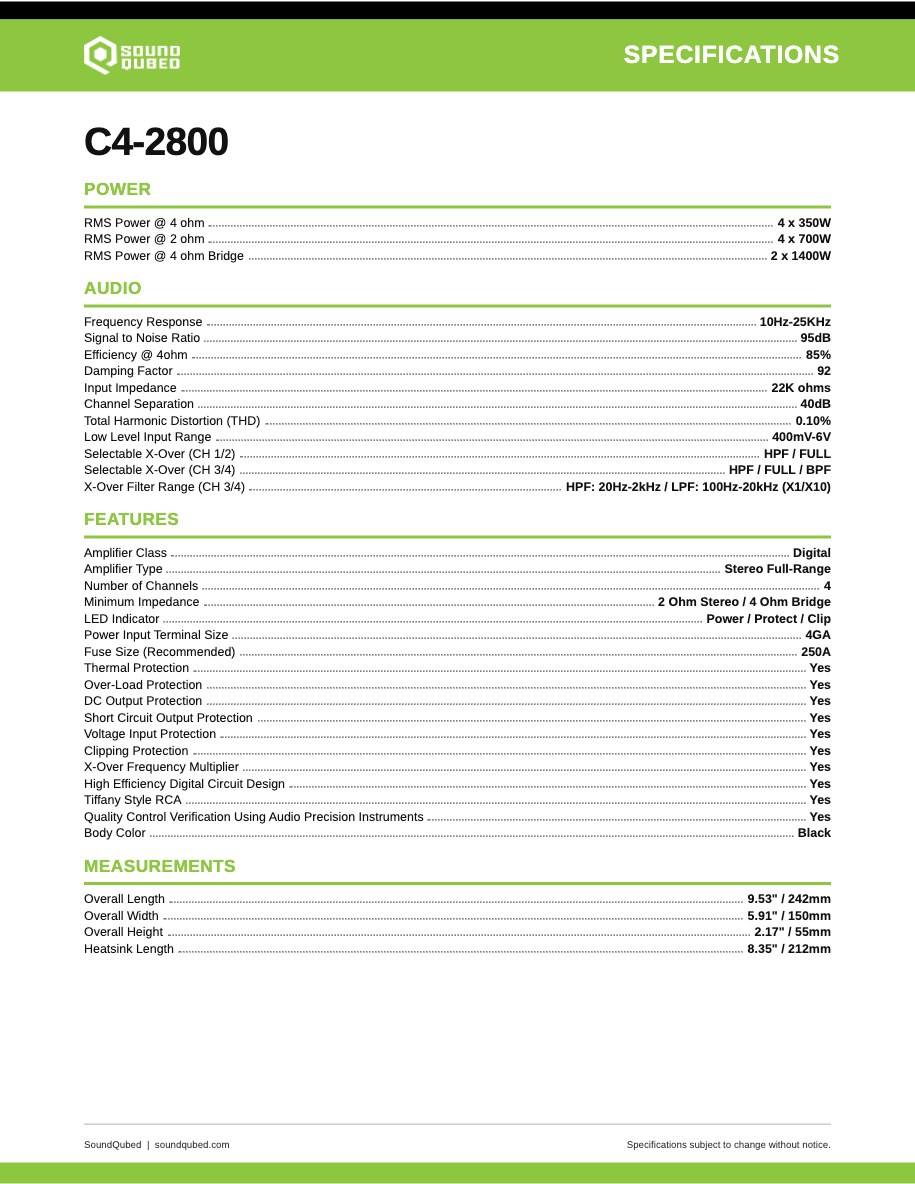

Spec Sheet
SoundQubed C4-2800
Every spec, the recommended fuse and wire size, and the full dimensions on one printable page.
Specifications
| Weight | 6 lbs |
|---|---|
| Type | |
| Series | |
| Power (RMS) |
