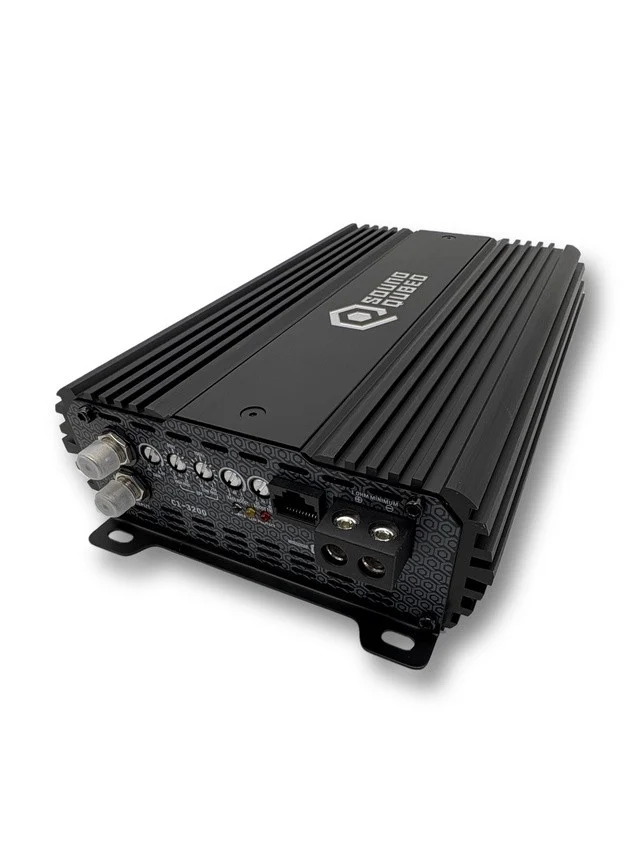

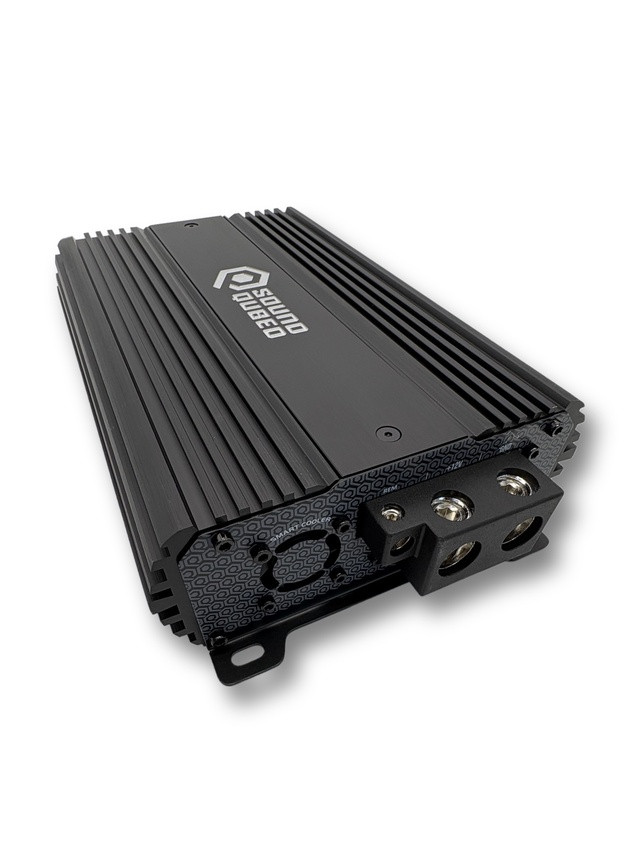

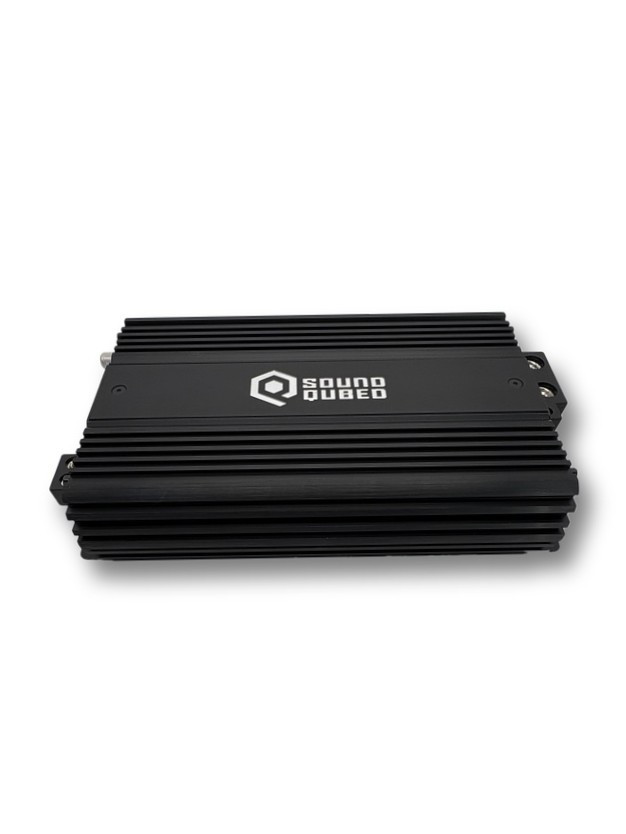

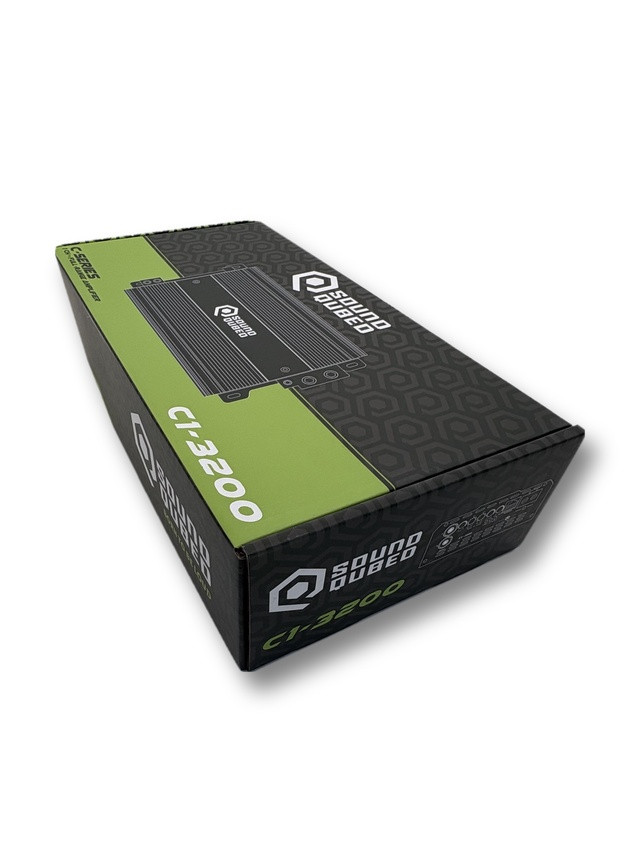

SoundQubed C1-3200 Monoblock Car Amplifier – 3,200W Class D Mono Subwoofer Amp

C Series·Amplifiers·SKU C1-3200

$549.95

In stock

Pairs well with

Subs this amp can power, plus the right gauge wiring.

Wiring more than one sub? Check your final impedance with the Ohm Load Calculator.

Description

The C1-3200 is where the C Series starts getting serious. It delivers 3,200 watts RMS at 1 ohm from a body under 10 inches long, which is a lot of power for that much space.

It's built for a multi-sub build that still has to leave room for groceries. It takes 0-gauge power, has an adjustable low-pass, high-pass and bass boost, a cooling fan, and the usual full set of protection circuits so it keeps playing through a long session.

Every C Series amp is checked on Audio Precision test gear before it leaves us, and each one carries thermal, overload, DC output, short-circuit and voltage protection.

C1-3200 Specifications

Power
RMS Power @ 4 ohm 970W
RMS Power @ 2 ohm 1800W
RMS Power @ 1 ohm 3200W
Audio
Frequency Response 20Hz-20KHz
Signal to Noise Ratio 90dB
Efficiency @ 4 ohm 85%
Damping Factor 92
Input Impedance 22K ohms
Total Harmonic Distortion (THD) 0.20%
Low Level Input Range 400mV-6V
Selectable X-Over (CH 1/2) Band-Pass Fixed
X-Over Filter Range (CH 1/2) HPF: 10Hz-2KHz / LPF: 50Hz-20KHz
Bass Boost Range 0~12dB
Bass Boost Frequency 30Hz-80Hz
Features
Amplifier Class Digital
Amplifier Type Monoblock Full-Range
Number of Channels 1
Minimum Impedance 1 ohm
LED Indicator Power / Protect / Clip
Power Input Terminal Size 0GA
Recommended Fuse 300A
Remote Level Control Yes
Cooling Fan Yes
Thermal Protection Yes
Over-Load Protection Yes
DC Output Protection Yes
Short Circuit Output Protection Yes
Voltage Input Protection Yes
Tiffany-Style RCA Inputs Yes

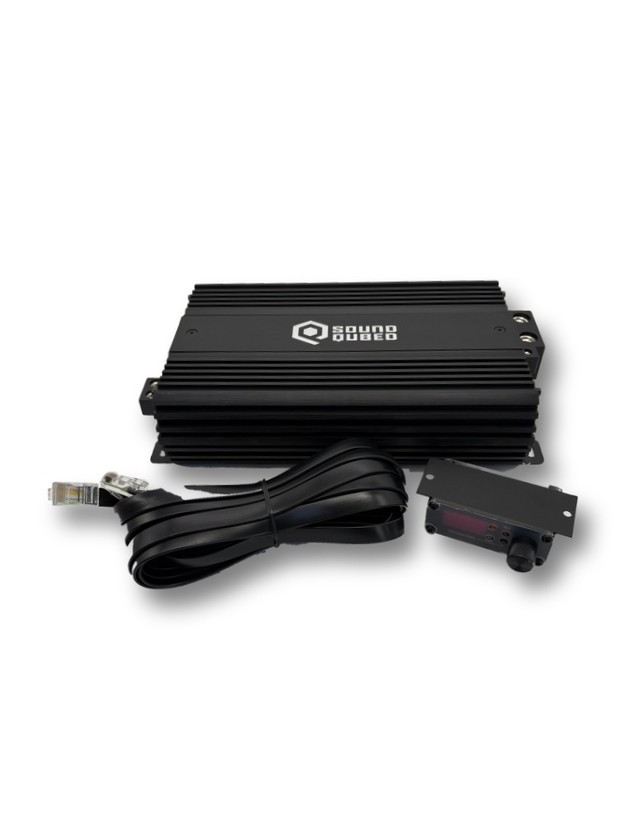

Optional Remote with Voltmeter & Temp Display Yes
Body Color Black
Dimensions
Overall Length 9.69" / 236mm
Overall Width 5.91" / 150mm
Overall Height 2.17" / 55mm
Heatsink Length 8.5" / 216mm

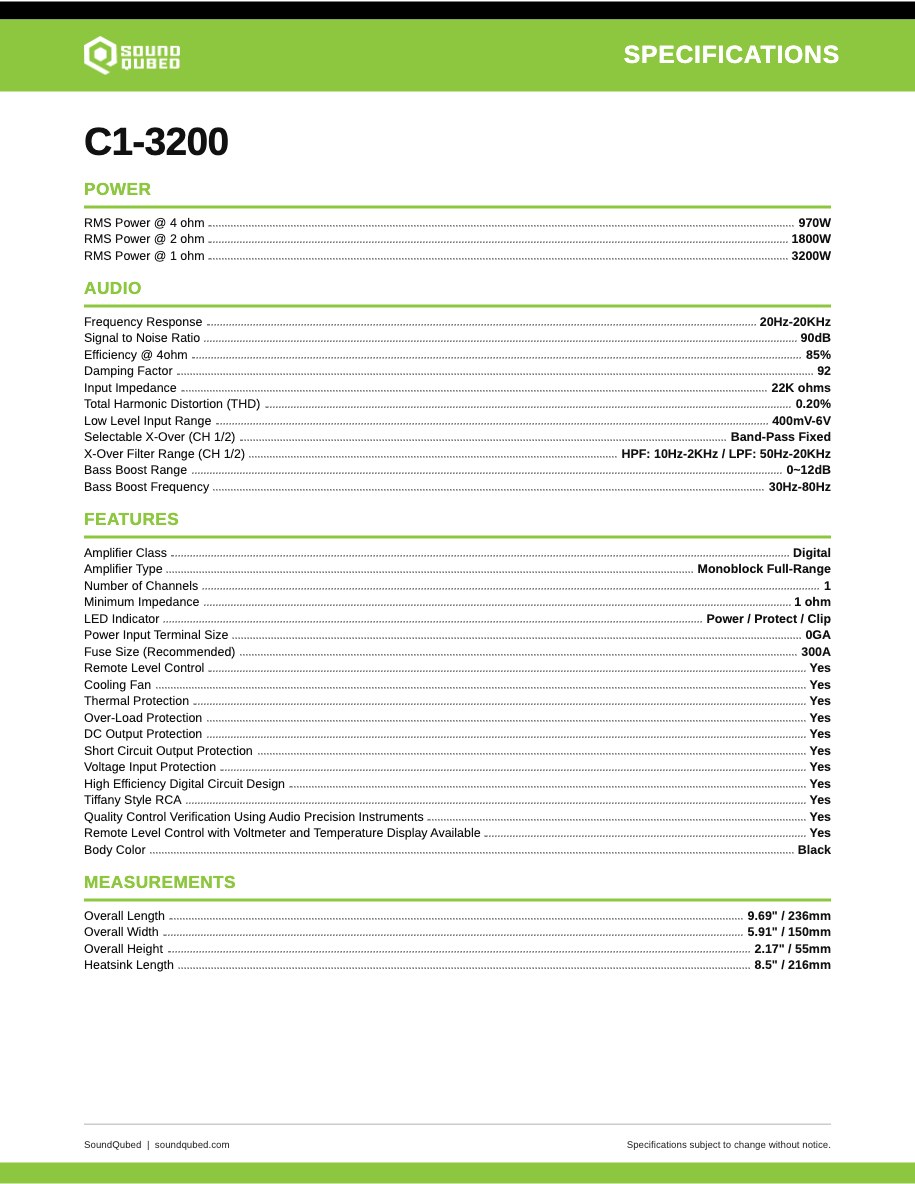

SoundQubed C1-3200 spec sheet

Spec Sheet

SoundQubed C1-3200

Every spec, the recommended fuse and wire size, and the full dimensions on one printable page.

View Spec SheetDownload PDF

Specifications

Weight 6 lbs
Type

Series

Power (RMS)
