Product Overview

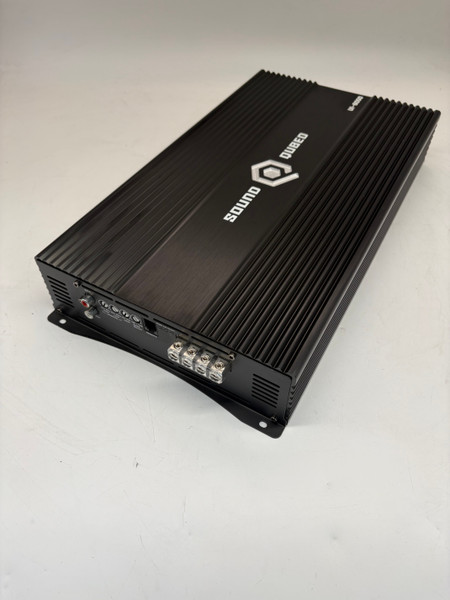

The U1-8000 amplifier provides ample power for loud daily driver and non-competition music demo systems! These 8000 W full-range amplifiers are powerful, stable, and take up very little space.
Wanna demo all day and turn heads at the car show? Look to the Utility Series 8000 W Full-Range amplifier for high efficiency and low bass without losing room in your car or truck.
The U1-8000 can drive 8000 watts RMS at 1Ω making it suitable for four HDX4 Series Subwoofers or five HDX3 Series Subwoofers.
At only 15.5 inches in length, this tiny titan can drive your sub stage till the cows come home and stay cooler than a rare ribeye while taking up less space than your kids Fischer Price backpack.
Get loud and low today.
Made for Music
Unlike our monoblock amplifiers, Utility Series amplifiers will drive the full frequency range of music to more than just subwoofers. As a 1-ohm stable full-range amp, you can power subs, mids, or highs. The only limitation is the power handling and impedance of the speakers you’re driving.
Versatile filtering and crossover settings let you power and tune a variety of system designs. Because of their high output and small footprint, Utility Series full-range amplifiers are ideal for extreme “ground pounder” daily driver setups, or strictly music demo systems. On the other hand, Utility Series amps can’t handle competition burps.
Knowing the specs of your charging system is crucial to running a full-range amplifier. We do not recommend running the Utility series on stock electrical charging systems. Alternator upgrades, the Big 3 wiring upgrade, and added battery capacity will help avoid damaging drops in voltage and/or current. The U Series Amplifiers require between 12-14.8 V from the charging system. AGM 12V batteries are a good fit. Lithium batteries that don’t require high voltage are also a good choice when running a full-range amp.
Water and electricity don’t mix
U Series Amplifiers do not have an IP rating. You should completely avoid submersion and/or saltwater environments. The amp casing doesn’t have sealed edges to keep water out. However, the circuit board has a water resistant coating to protect against humidity or very small amounts of incidental moisture.
- Single Channel
- 8000 Watts (RMS) @ 1 Ohm
- 1-Ohm stable
- 1/0 AWG inputs
- Charging system upgrades are necessary
| Wattage | 8000 Watts |
|---|---|
| Test Voltage | 14.4V |
| Channels | 1 |
| Cont Wattage @ 4ohm | 3,000 |
| Cont Wattage @ 2ohm | 5,000 |
| Cont Wattage @ 1ohm | 8,000 |
| S/N Ration | >100dB |
| Input Voltage Sensitivity | 8 - 0.2 |
| Power Wire Gauge - In | 1/0 |
| Speaker Wire Gauge - Out | 8 |
| Diminesions (in) | 15.2 x 8.9 x 2.5 |
| Dimensions (mm) | 385 x 225 x 65 |
